Specifications
- Manufacturer: Harley-Davidson

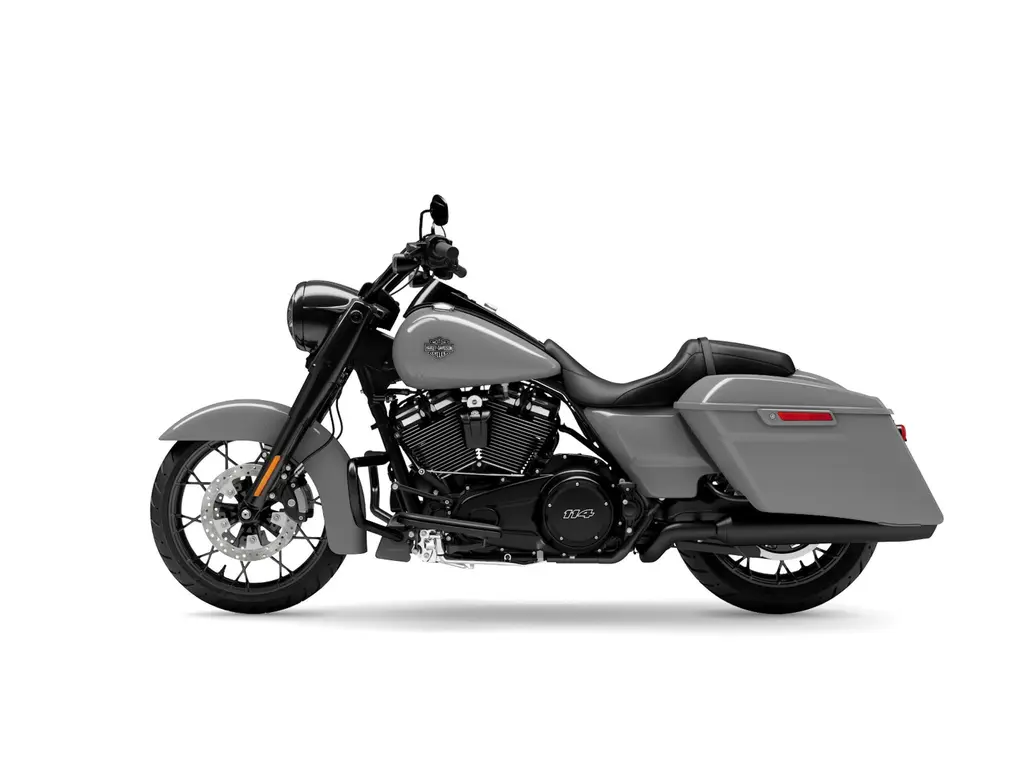

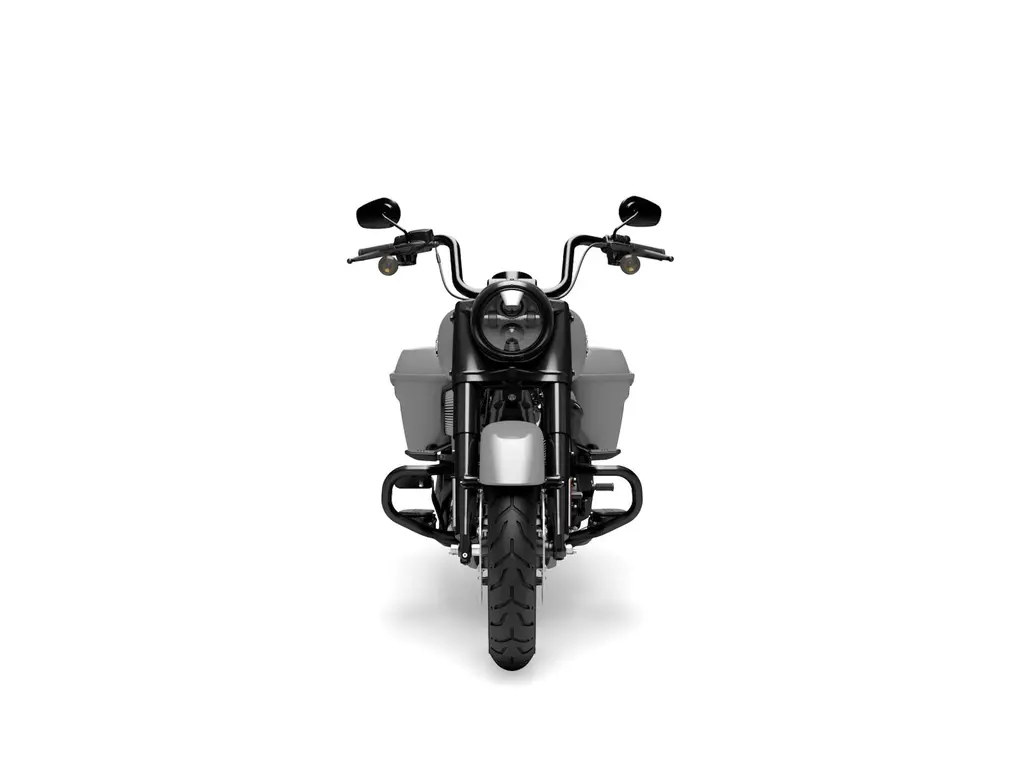

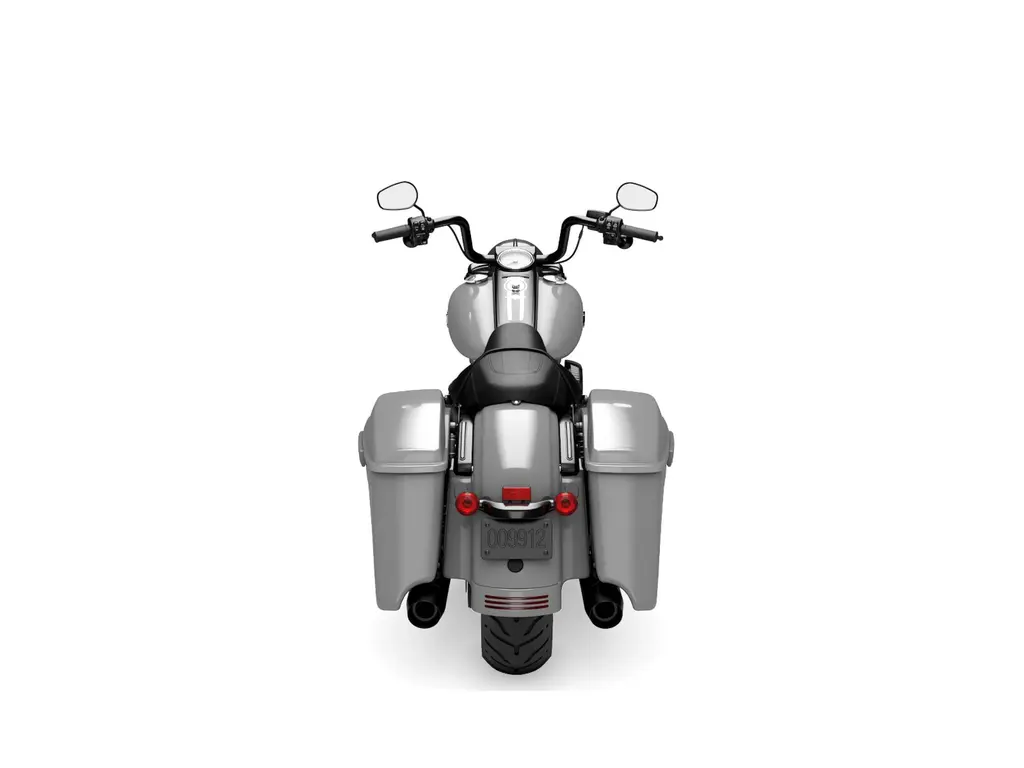

- Model: Road King® Special Billiard Gray
- Year: 2025
- Type: Touring
- Length: 2,420 mm (95.3 in.)
- Overall Width: 990 mm (39 in.)
- Overall Height: 1,150 mm (45.3 in.)
- Seat Height, Laden: N/A
- Seat Height, Unladen: 695 mm (27.4 in.)
- Static Ground Clearance: 125 mm (4.9 in.)
- Rake (steering head): 26
- Fork Angle: 29.25
- Trail: 175 mm (6.9 in.)
- Wheelbase: 1,625 mm (64 in.)
- Tires, Type: Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Tires, Front Model: D408F
- Tires, Front Specification: 130/60B19 61H
- Tires, Rear Model: D407T
- Tires, Rear Specification: 180/55B18 80H
- Fuel Capacity: 22.7 l (6 gal.)
- Reserve Fuel Capacity, Fuel Injection: 3.8 l (1 gal.)
- Oil Capacity (w/filter): 4.9 l (5.2 qt.)
- Transmission Capacity: .95 l (1 qt.)
- Primary Chain Case Capacity: 1 l (1.1 qts.)
- Coolant Capacity: N/A
- Weight, As Shipped: 351 kg (774 lb.)
- Weight, In Running Order: 366 kg (807 lb.)
- Gross Vehicle Weight Rating: 617 kg (1,360 lb.)
- Gross Axle Weight Rating, Front: 227 kg (500 lb.)
- Gross Axle Weight Rating, Rear: 420 kg (927 lb.)
- Luggage Capacity -Volume: 0.07 m3 (2.5 cu ft)
- Engine: Milwaukee-Eight® 114
- Valves: Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder
- Bore: 102 mm (4.016 in.)
- Stroke: 114.3 mm (4.5 in.)
- Displacement: 1,868 cc (114 cu in)
- Compression Ratio: 10.5:1
- Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
- Air Cleaner: Paper, washable
- Exhaust: Black, 2-1-2 dual exhaust with tapered mufflers
- Lubrication System: Pressurized, dry-sump with oil cooler
- Primary Drive: Chain, 34/46 ratio
- Final Drive: Belt, 32/68 ratio
- Clutch: Mechanically actuated, 10 plate wet, Assist and Slip
- Transmission: 6-Speed Cruise Drive®
- Gear Ratios (overall) 1st: 9.593
- Gear Ratios (overall) 2nd: 6.65
- Gear Ratios (overall) 3rd: 4.938
- Gear Ratios (overall) 4th: 4
- Gear Ratios (overall) 5th: 3.407
- Gear Ratios (overall) 6th: 2.875
- Frame: Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin down-tubes; bolt-on rear frame with forged fender supports; MIG welded.
- Swingarm: Mild steel; two-piece drawn and welded section; forged junctions; MIG welded.
- Front Fork: 49 mm Dual Bending Valve
- Rear Shocks: Premium low height hand-adjustable rear suspension
- Wheels, Optional Style Type: N/A
- Wheels, Front Type: Gloss Black Prodigy
- Wheels, Front Diameter: 19 in. (483 mm)
- Wheels, Front Width: 3.5 in. (89 mm)
- Wheels, Rear Type: Gloss Black Prodigy
- Wheels, Rear Diameter: 18 in. (457 mm)
- Wheels, Rear Width: 5 in. (127 mm)
- Brakes, Caliper Type: 32 mm, 4-piston fixed front and rear
- Brakes, Rotor Type: Dual floating rotors (front), fixed rotor (rear)
- Brakes, Front Diameter: 300 mm (11.8 in.)
- Brakes, Front Thickness: 5.1 mm (0.2 in.)
- Brakes, Front is dual: Yes
- Brakes, Rear Diameter: 300 mm (11.8 in.)
- Brakes, Rear Thickness: 7.1 mm (0.28 in.)
- Brakes, Anti-Lock Braking System (ABS): Standard
- Suspension Travel, Front: 117 mm (4.6 in.)
- Suspension Travel, Rear: 54 mm (2.1 in.)
- Engine Torque Testing Method: J1349
- Engine Torque: 165 Nm (122 ft-lb)
- Engine Torque (rpm): 2,750
- Power (Hp/kW): 95 HP / 71 kW @ 5020 rpm
- Lean Angle Testing Method: J1168
- Lean Angle, Right: 32
- Lean Angle, Left: 31
- Fuel Economy Testing Method: Estimated City/Hwy
- Fuel Economy: 5.5 l/100 km (43 mpg)
- CO2 Emissions Testing Method: N/A
- CO2 Emissions: N/A
- Stationary Noise (BRZ only): N/A
- Infotainment system: N/A
- Screen Size: N/A
- Type: N/A
- Watts Per Channel: N/A
- Speakers: N/A
- Speaker Size: N/A
- Headset Specifications (if equipped): N/A
- AM: N/A
- FM: N/A
- MW: N/A
- LW: N/A
- Weather Band (WB): N/A
- SD Card, Flash Drive and MP3 - via USB Connection: N/A
- Languages: N/A
- Hands-free Mobile Phone - via Bluetooth: N/A
- Voice Recognition Languages: Phone functions only: N/A
- Voice Recognition Languages: Tuner/Media/Navigation: N/A
- Rider/Passenger Intercom: N/A
- Vehicle Information Screen (Air temperature, oil pressure and EITMS): N/A
- Text-to-Speech (TTS) Languages: N/A
- USB: N/A
- Phone Connectivity: N/A
- Bluetooth: N/A
